Home chevron_right Products chevron_right GEM PRO Landfill Gas Analyzer
GEM PRO Landfill Gas Analyzer

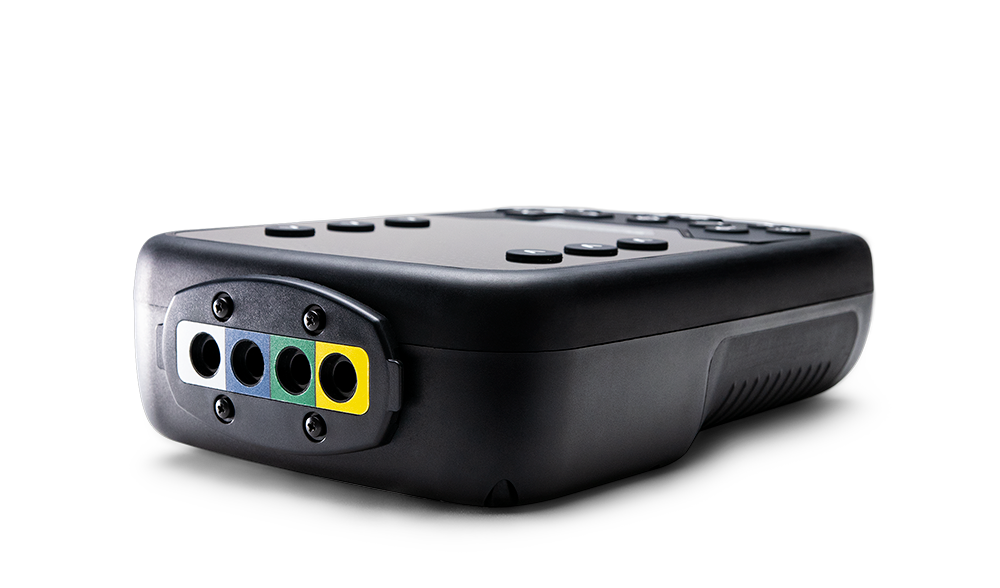

Static, Differential, System and Gas outlet Ports
Swappable long-life battery
The only gas extraction management instrument with field serviceable gas modules
Bluetooth probe adapter for wireless temperature, anemometer and RH probes
Professional gas extraction and instrument management software with over the air firmware update capability
GEM PRO & Accessories

GEM PRO Landfill Gas Analyzer

Modular design puts you in control—swap or add sensors in-house for less downtime and more flexibility, with extended battery life and a high-visibility touchscreen.

Request a quote
play_circle_outline
Product Description
Specification
Applications
Downloads
Product Description
add remove

GEM PRO is the only landfill gas analyzer which lets you replace or add gas modules in-house or in the field. Pre-calibrated sensor modules eliminate the need to send your analyser back to the factory for service or calibration. No more shipping delays means you get back to work faster and your analyzer never has to leave your hands.

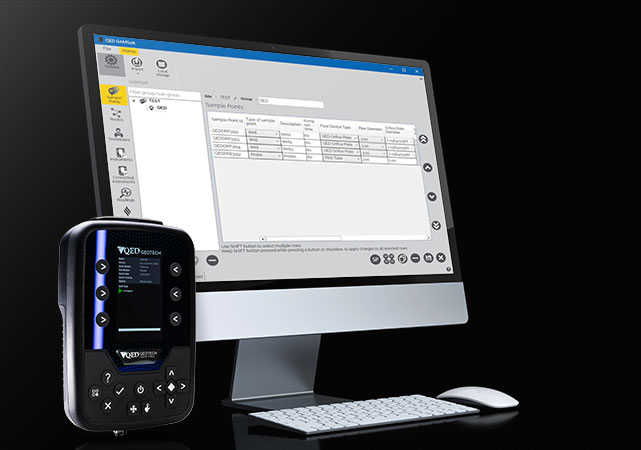

A high definition touch screen and professional GAMSoft software make collecting and uploading easier with fewer errors. Quickly survey and tune your gas well field, knowing that you have all-day battery capacity with the swappable battery pack lets you keep working without distruption.

Key Features
  • Pre-calibrated Modular design
  • 1-7 gases configured by the operating system
  • Records static, differential and system pressures
  • Calculates gas flow and heat value
  • Live editing and addition of well IDs in the field
  • GPS location tracking and tagging
  • Hydrogen compensated CO measurement (Opt)
  • Field replaceable battery pack
  • WIFI and Bluetooth communications
  • Utilizes GAMSoft software
  • Zone 1 hazardous area certification
  • 3-year warranty
Benefits
  • No requirement for back-to-base service to replace modules
  • Modules have individual calibration certificates
  • Configuration and functional flexibility
  • Accurate balancing of gas field with maximized LFG output from site
  • Real time gas field adjustments
  • Effective borehole management
  • Accurate enhanced CO readings per EPA requirements
  • Longer field operation between battery charges
  • Secure, wireless communication
  • Compliance and monitoring reporting and over the air firmware updates
  • Industry leading Warranty
Specification
add remove
Key Features
  • Up to Seven Gas Capability
  • Flow 550 ml/min typical
  • Temperature Range 14°F to 210°F ( -10°C to +100°C) with optional probe / ±1°F (0.5°C) accuracy
  • Relative pressure measurement ±200 "H2o / ±1.5" H2o ( ±500 mbar / ±4 mbar to ±15 mbar)
  • Barometric pressure measurement ±14.765" to 44" Hg/ ± 0.15" Hg (500 to 1500 mbar / ±5 mbar)
  • Battery Type Rechargeable nickel metal hydride battery pack (user replaceable in Zone 1 hazardous areas)
  • Battery Life Typical use 8-10 hours from full charge
  • WIFI or Bluetooth Communications
  • Display HD 5” touchscreen LCD
  • CERTIFICATION RATING UKEX/ATEX / IECEx (Ta = -10°C to +50°C) II 2G Ex ib IIA T1 Gb
  • CERTIFICATION RATING SGS Ex ib opis IIA T1 (Ta= -10°C to +50°C) (Canada), AEx ib IIA T1 (Ta= -10°C to +50°C) (USA)
Gases Analysed
  • CH4
  • CO2
  • O2
  • H2S
  • CO
  • H2
  • NH3
  • Optional Hydrogen compensated carbon monoxide: Hydrogen cross gas effect on carbon monoxide approximately 1% Do not use where hydrogen is in excess of 10,000ppm
Applications
add remove
GEM PRO Landfill Gas Analyzer Applications
Gas Extraction Management on Landfills

Enhanced Monitoring for carbon monoxide (CO) per Alternative Method 143.

Anaerobic Digesters at Farms

Breweries and Food Processing

Waste Water

Water Recovery Facilities

Methane Recovery

Downloads
add remove
GEM PRO Landfill Gas Analyzer Downloads
Product Data Sheets & Specifications
Specs and Drawings
Product Manuals & Drawings
Technical Papers
Download Selected Files
Download All Files

Certifications

ATEX
SGS
Conformite Europeenne
UKAS
